Солнечные батареи в рамной конструкции, двух наиболее распространённых видов – поликристалл и монокристалл.
Mono340Wp предлагаем для солнечных систем где можно обеспечить достаточную площадь установки.
Poly260Wp предлагаем для небольших солнечных систем, где площади установки ограничены.
Model YS340M-72
Rated Maximum Power at STC 340W
Maximum Power Voltage (Vmp) 37.1V
Maximum Power Current (Imp) 9.26A
Open Circuit Voltage ( Voc) 47.0V
Short Circuit Current (Isc) 9.81A
Module Efficiency 17.04%
Power Tolerance 0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell Type Mono-crystalline 156x156mm (6inch)
No. of Cells 72 (6x12)
Dimension 1956x990x40/45/50mm
Glass 3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box IP65&IP67 Rated
Output Cable Section Size: 4mm² , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes 3&6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature -40°c~+85°c
Maximum Series Fuse 15A
NOCT 45±2°c
Application Class Class A
Temperature Coefficient of Pmax -0.40%/°c
Temperature Coefficient of Voc -0.30%/°c
Temperature Coefficient of Isc +0.05%/°c
Model YS260P-60
Rated Maximum Power at STC 260W
Maximum Power Voltage (Vmp) 31.1V
Maximum Power Current (Imp) 8.37A
Open Circuit Voltage ( Voc) 38.1V
Short Circuit Current (Isc) 8.98A
Module Efficiency 16.02%
Power Tolerance 0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell Type Poly-crystalline 156x156mm (6inch)
No. of Cells 60 (6x10)

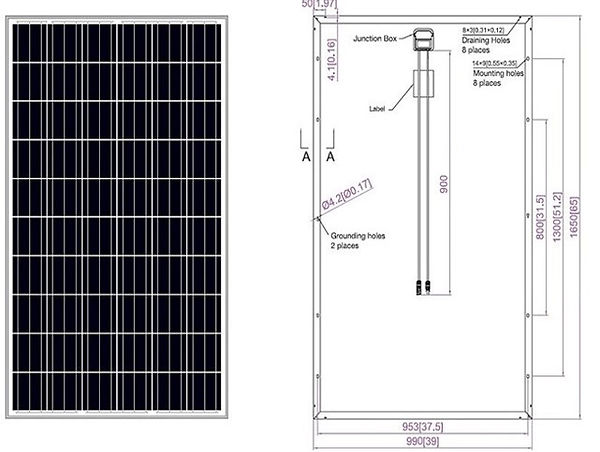

Dimension 1650x990x35/40mm
Glass 3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box IP65&IP67 Rated
Output Cable Section Size: 4mm² , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes 3&6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature -40°c~+85°c
Maximum Series Fuse 15A
NOCT 45±2°c
Application Class Class A
Temperature Coefficient of Pmax -0.41%/°c
Temperature Coefficient of Voc -0.31%/°c
Temperature Coefficient of Isc +0.06%/°c
